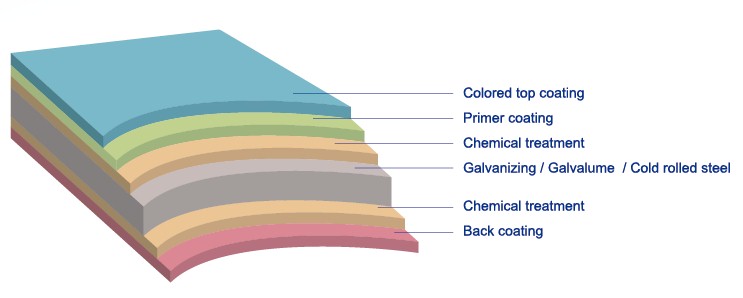

The base metal of Pre-painted steel are Galvanizing steel , Galvalume Steel and Cold rolled steel Smooth and fine painted surface , Selection of colors and material properties that meet specific needs , through the combined use of diverse paints and base substrates. Improved such factors as process , space , energy and load savings at user plant.
APPLICATION
Home appliance OA equipment
AV equipment , electronic device Housing equipment (Roof , interior , steel furniture)
MOQ：our moq should be 60mt per size
| Thickness | 0.15mm-2.0mm | ||
| Width | 600mm-1500mm | ||
| Coating | 40g/m2-500g/m2 | ||
| Paints | Top | 15-35 Microns | Standard polyester (PE),PVDF |
| Back | 5-15 Microns | ||
| Color | RAL SCALE | ||
| Coil ID | 508mm-610mm | ||
| Coil Weight | 3MT-8MT | ||
| Base Material | Galvanized steel / Galvalume steel / Cold rolled steel | ||
| Standard | JIS 3302 | EN10327 / EN10326 | ASTM A653 |
| Grade | SGCC / SGCH | DX51D+Z / DX52D+Z | CS |
| SGC 340 | S22DGD+Z | SS GRADE 230 | |
| SGC 400 | S25DGD+Z | SS GRADE 255 | |
| SGC 440 | S28DGD+Z | SS GRADE 275 | |
| SGC 490 | S32DGD+Z | SS GRADE 340 | |
| SGC 570 | S35DGD+Z | SS GRADE 550 | |
| S55DGD+Z |
| TEST ITEM | STANDARD | PE PAINT FOR STEEL COIL |
| T Bend | NCCA11-19 | ≤2T |
| Cupule Test | GB / T9753 | >8mm |
| Impact (Shock Force J) | GB / T1732 | >9J |
| Adhension (MEK) | GB / T9286 | Not less than 0 |
| Pencil Hardness | GB / T6739 | ≥2H |
| Gloss | GB / T1743 | ≤±5 |
| Chromatism (△E) | ECCA T3 | △E≤5 |
| MEK Scrub Resistance | NCCA11-18 | ≥100 |
| Salt Spray Resistance | GB / T10125 | 500hr |
| Weather Resistance (Q.U.V) | GB / T1865 | 500hr |
| Wet and Heat Resistance | GB / T1740 | >1000hr |
