Description
Hot-dip aluminum-zinc allor-coated steel has high aluminum content , 55% of mass and 80% of capacity, and shows better thermal resistance than ordinary hot-dip galvanized steel sheets . Even when exposed to high air temperatures , it shows neither significant increase of mass due to oxidization nor any surface discoloration due to progressive alloying.

APPLICATION
Building construction and civil engineering structure
Electric appliance

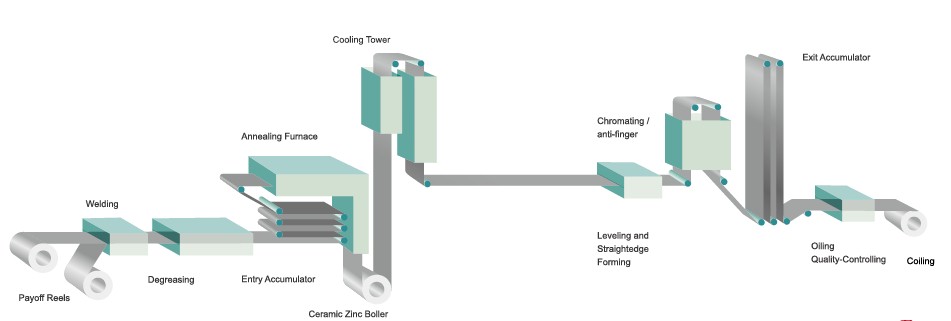

PRODUCTION LINE
Excellent durability and corrosion resistance.
Beautiful silvery white appearance with a finely spangled pattern .
Excellent thermal resistance and high heat reflectivity due to
aluminum contained in the coating.





MOQ:our moq should be 60mt per size

Technical Parameters
SPECIFICATION
Thickness 0.13mm - 2.0mm
Width 600mm - 1500mm
Az coating 40g/m2 -200g/m2
Spangle Regular / Minimized
Passivation Chromated / Chromated-free
Surface Treatment ANTI—FINGER / SKIN PASS
Oiled Oiled / Dry
Coil ld 508mm / 610mm
Coil weight 3mt-10mt

STANDARD & GRADE (BASE METAL :GALVANIZED STEEL)
Standard JIS G3321 EN10147 / EN10327 ASTM A792
Grade SGLCC DX51D+AZ / DX52D+AZ CS-B
  SGLC 340 S22DGD+AZ SS GRADE 230
  SGLC 400 S25DGD+AZ SS GRADE 255
  SGLC 440 S28DGD+AZ SS GRADE 275
  SGLC 490 S32DGD+AZ SS GRADE 340
  SGLC 570 S35DGD+AZ SS GRADE 550
    S55DGD+AZ
