Description

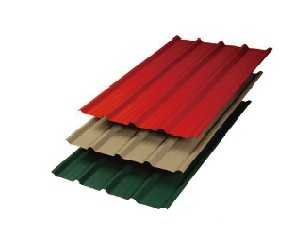

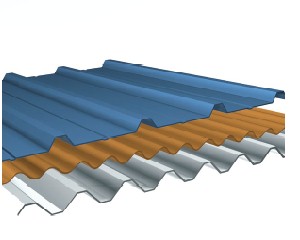

Corrugated steel looks like rippled potato chips and is widely used in construction projects. Owing to its remarkable durability, this kind of material is more and more popular all over the world.It’s convenient and easy to install, it’s mainly used on commercial buildings, residential homes, etc. This material can support a considerable amount of weight due to its high durability. Because of its anti-moisture property, it’s more probably t to be used in costal areas. It’s also widely used in areas where there are strong winds, snow and storms.



APPLICATION
Home appliance
AV equipment , electronic device
OA equipment
Housing equipment (Roof , Interior , steel furniture)









MOQ:our moq should be 60mt per size

Technical Parameters
SPECIFICATION
Thickness 0.13mm-1.0mm / BWG / AWG
Width Before Corrugation 762mm-1200mm
Width After Corrugation 600mm-100mm
Length 1000mm-3800mm
Coating 40g/m2-120g/m2
Paints Top 16-25 microns Standard polyester(PE),PVDF
Back 5-7 Microns
Color RAL SCALE
Weight Per Bundle 2mt-4mt
Base Material Galvanized steel / GALVALUME STEEL / Pre-painted steel

STANDARD & GRADE
Standard JISG3302/3321 ASTM A653 / A792 EN10327 / 10327
Grade SCGH / SGLCH CS-B DX51D-Z or AZ

MECHANICAL PROPERTIES
Tensile Strenght T.S 400 N/mm2-500 N/mm2
Hardness HRB70-HRB 90
